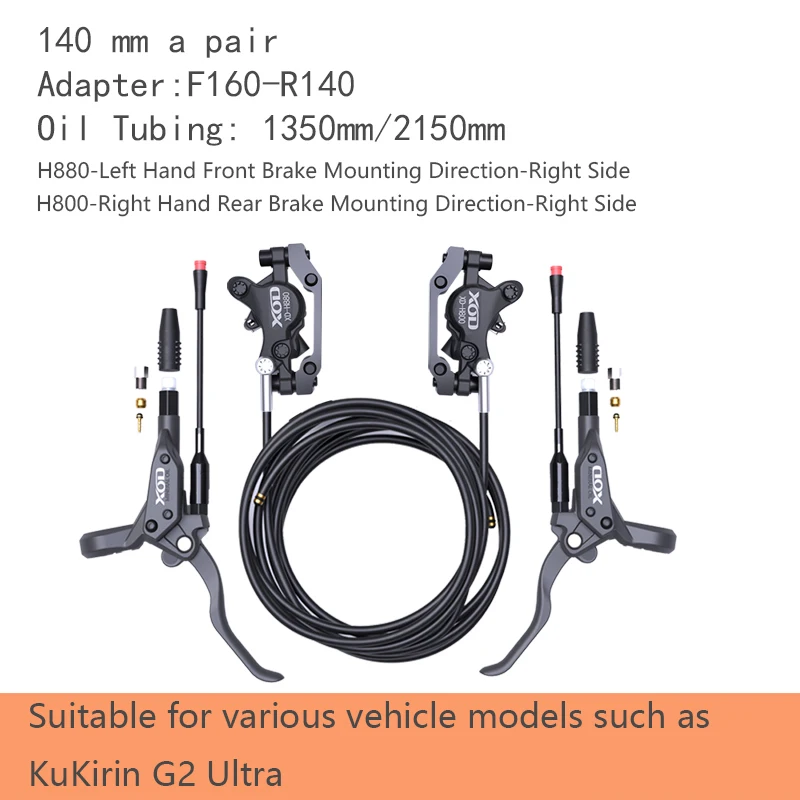

Electric Scooter Brakes XOD Sealed – 2 Pins XD-H800/XD-H880 F160-R140MM set

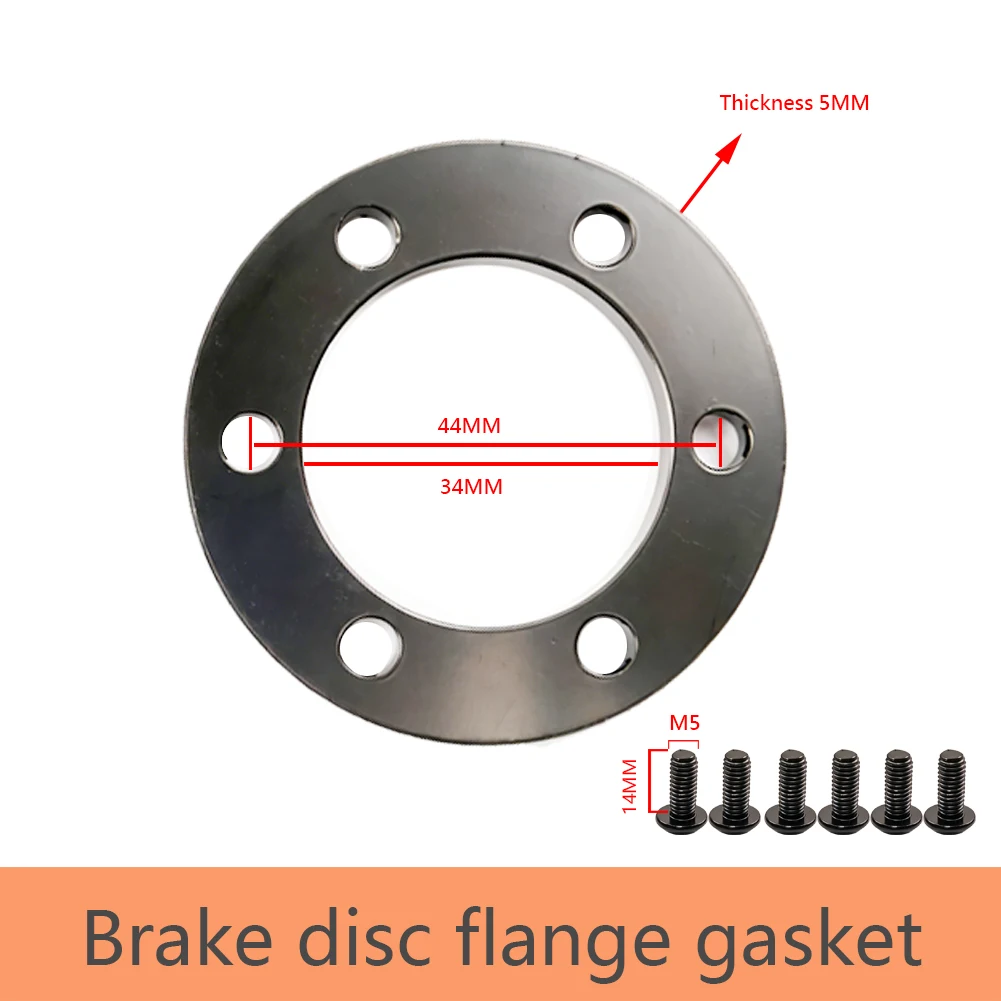

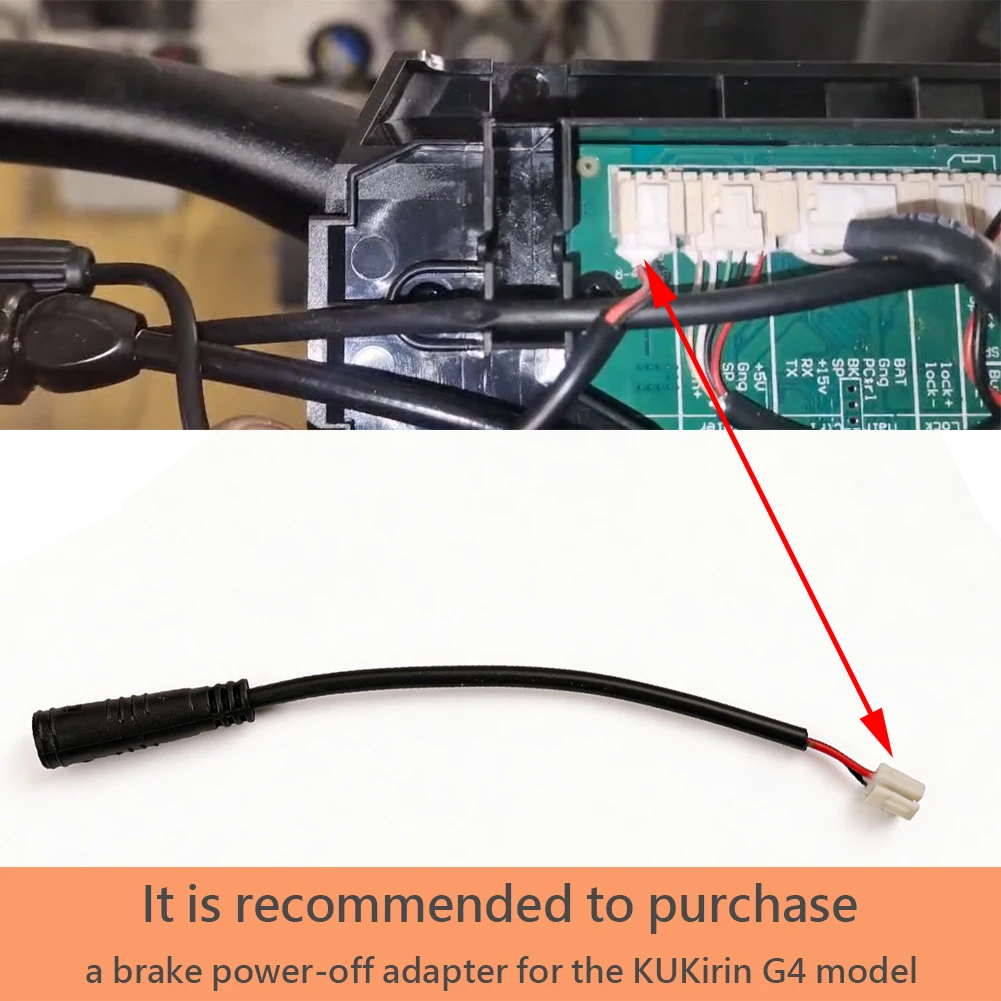

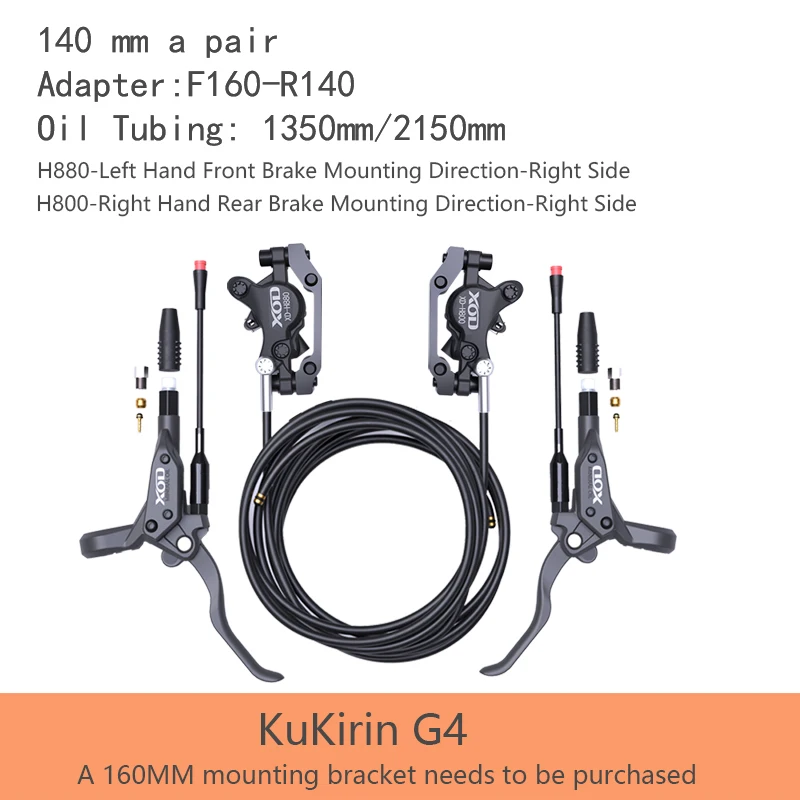

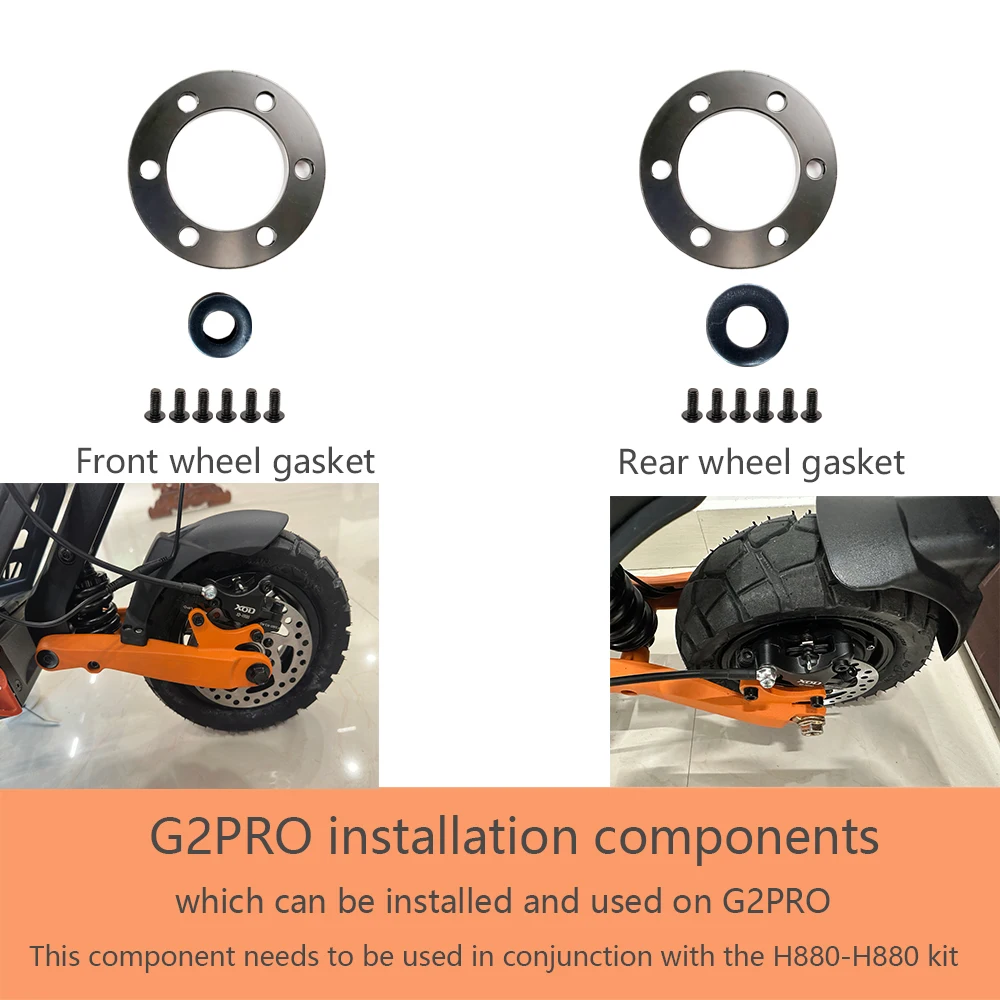

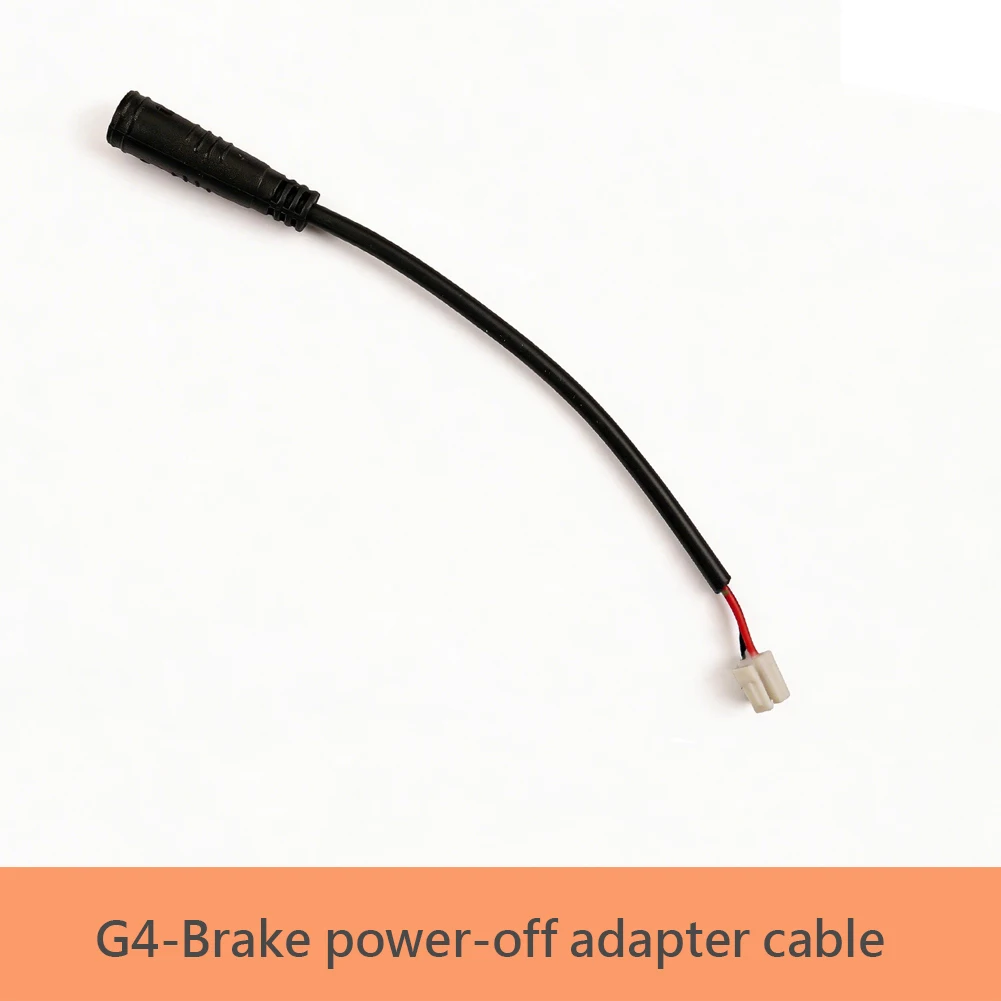

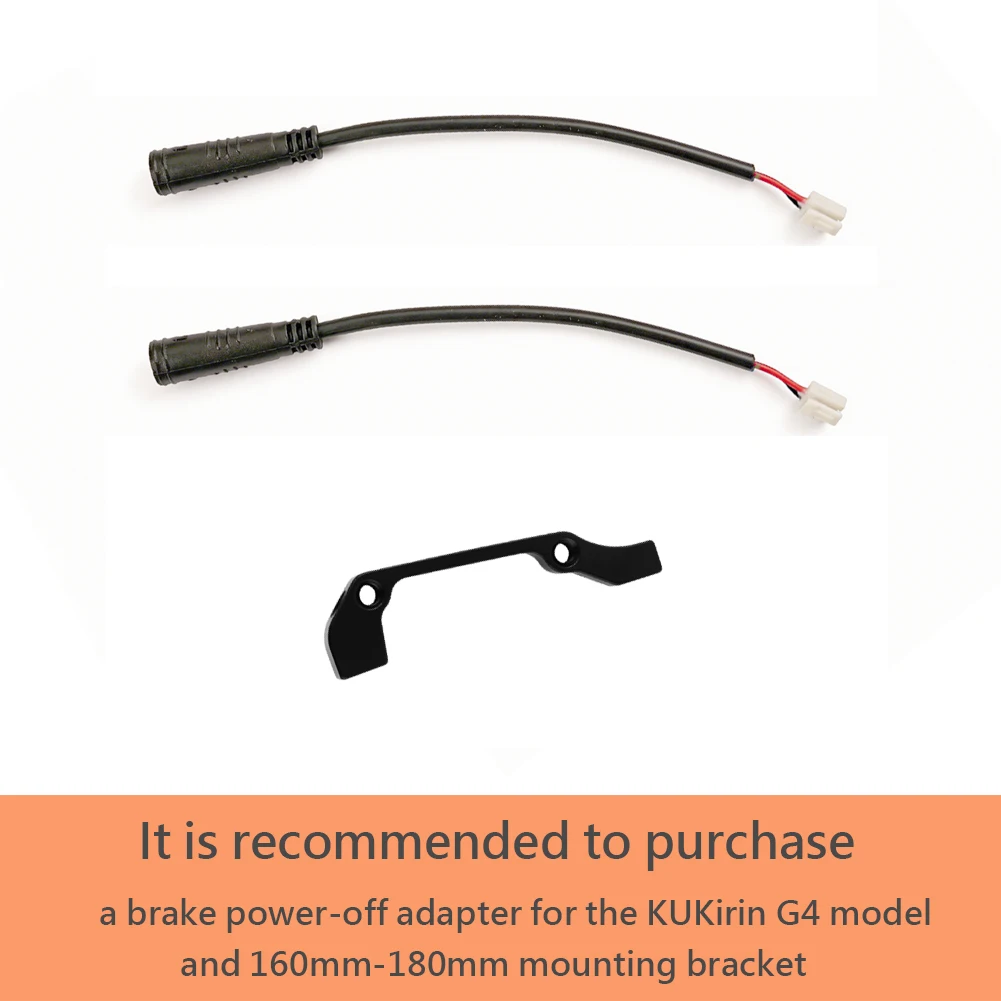

Note that the installation of kukirinG2PRO2025 requires the addition of brake disc spacers, while the perfect fit of kukirinG4 requires the purchase of a 160MM bracket and a brake power-off adapter cable. All accessories are available for purchase through this link

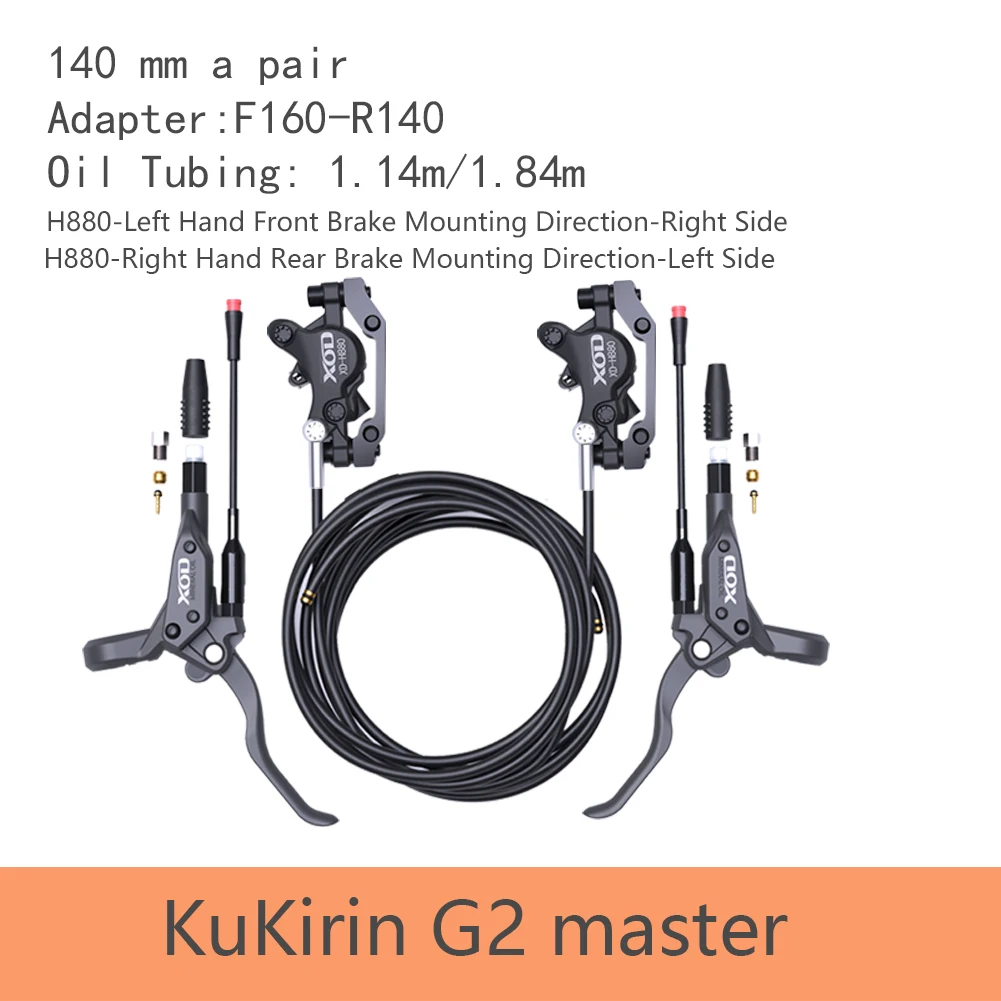

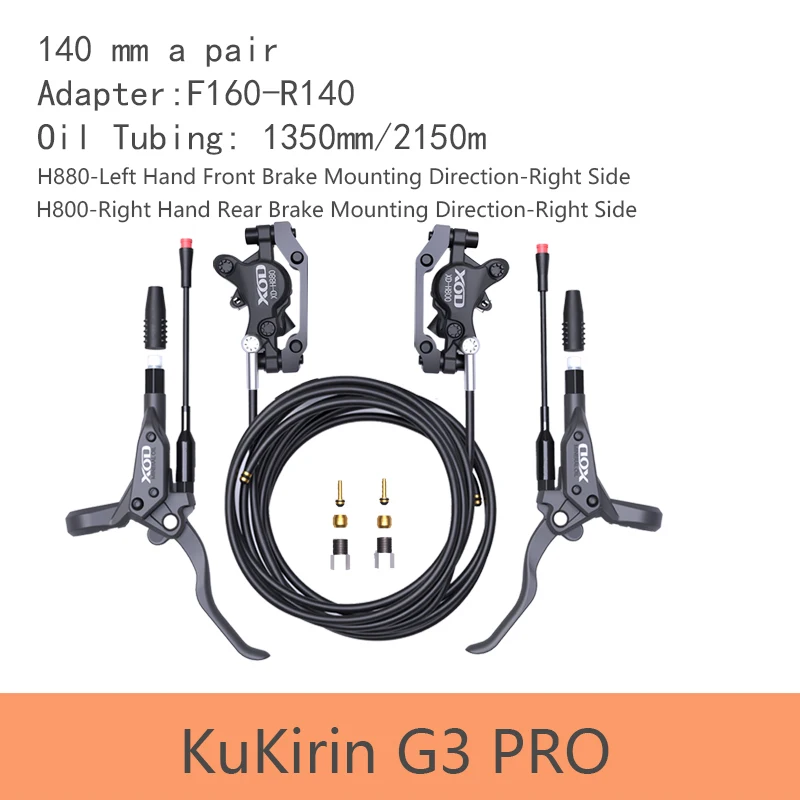

⚡ Specifically designed for  KuKirin , G2 Max G2 Master, G3, G3 Pro, G4, G4 Max ，G5

Améliorez la sécurité et la performance de votre scooter électrique KuKirin avec ces freins hydrauliques XOD. Conçus pour un freinage puissant et réactif, ils garantissent une expérience de conduite plus sûre, même à grande vitesse ou sur routes mouillées.

🔧 Technical Features:

✔ Compatibility: Perfectly suited for KuKirin G2 Pro, G2 Max, G2 Master, G3, G3 Pro, G4, G4 Max 2024 and later versions, as well as other electric scooters and bicycles

✔ Connector type: 2-pin

✔ Cable length: 10CM-20CM

• Applicable dimensions for mounting brackets：Suitable for 140MM brake discs

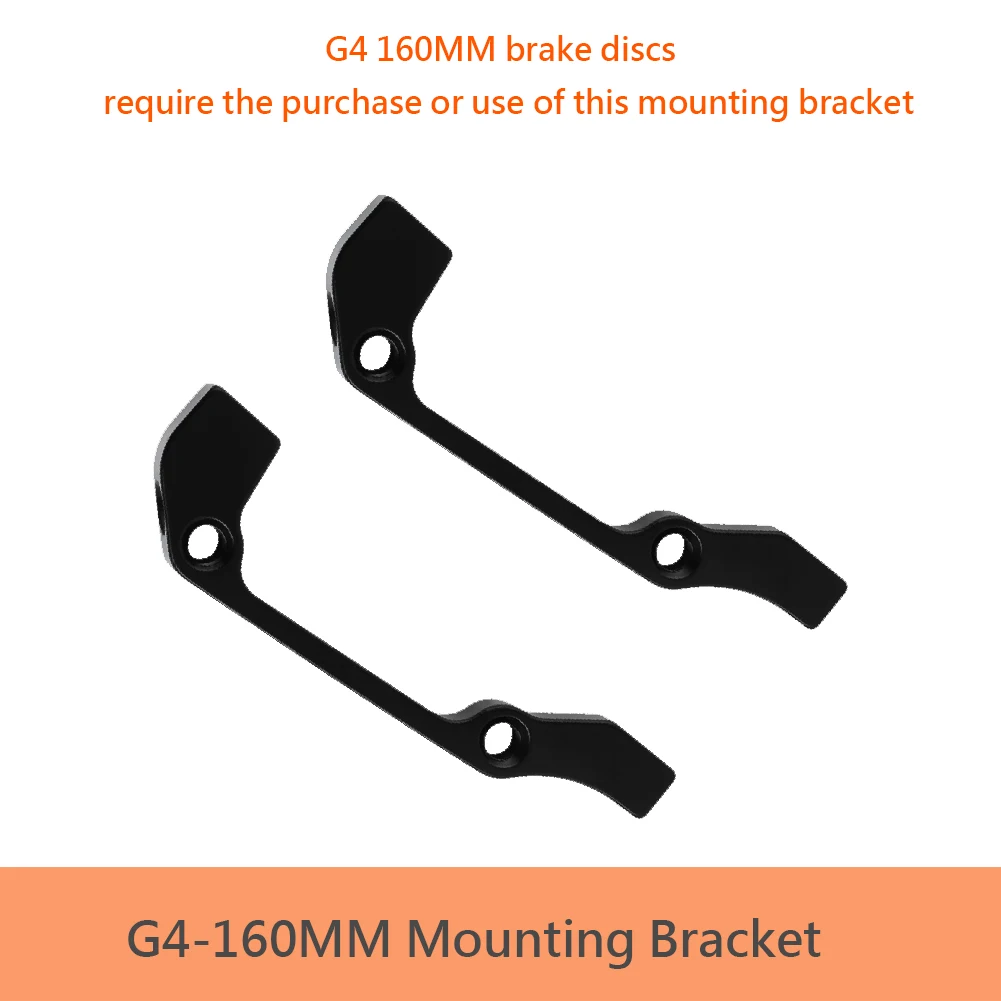

• （Brake disc brackets for 160MM-180MM brake discs need to be purchased separately）

• （It is prohibited to forcibly add shims to the 140MM mounting bracket, as this may pose a risk        of brake pump fracture. If you need to install this set of hydraulic brakes on a 160MM-180MM     brake disc, please purchase a 160MM-180MM mounting bracket）

• Avant : approximately 1350 mm

• Rear: approximately 2150 mm

✔ Weight: Approximately 1 kg (per set)

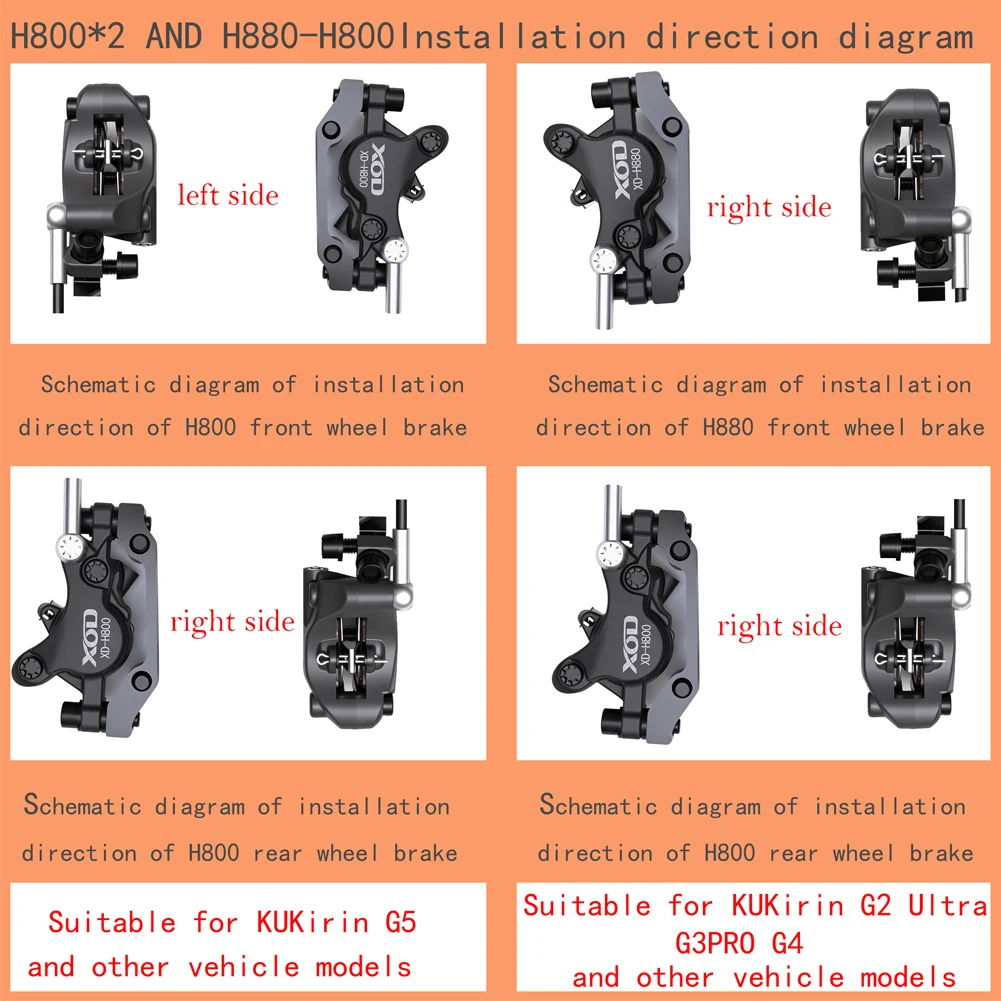

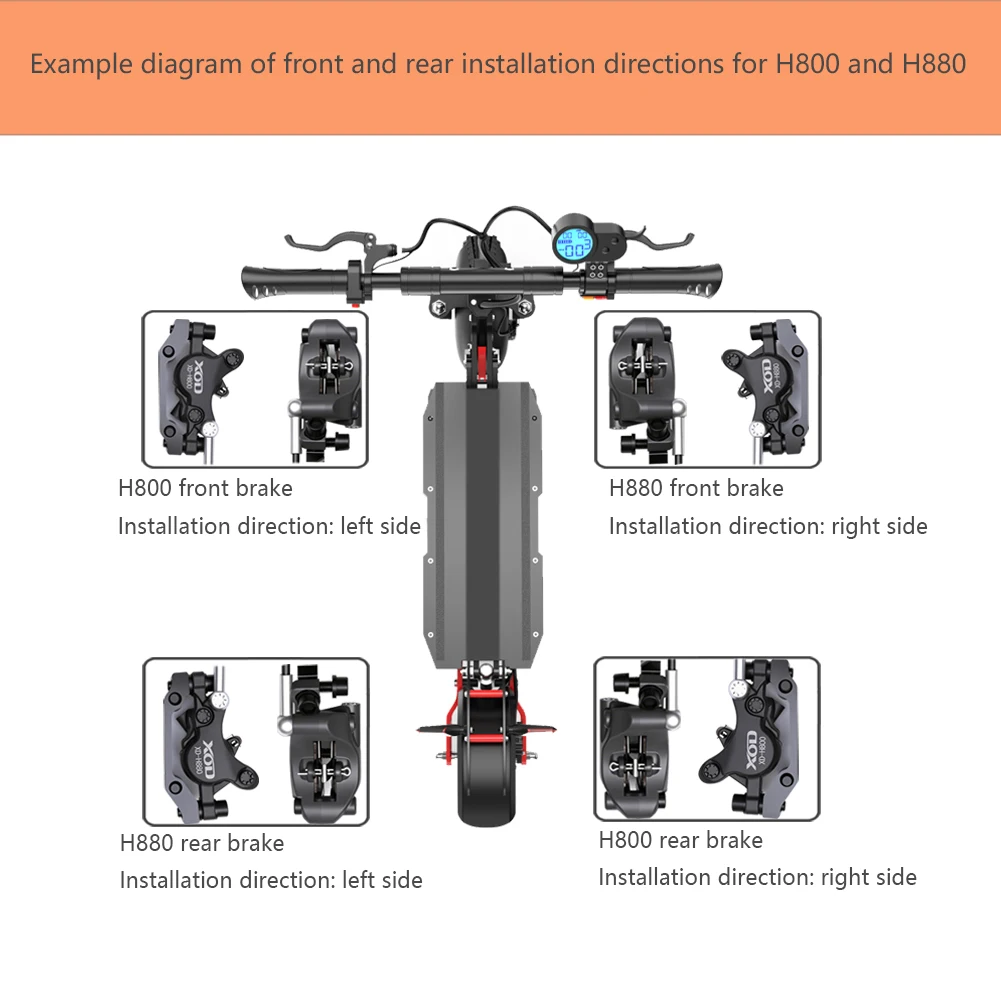

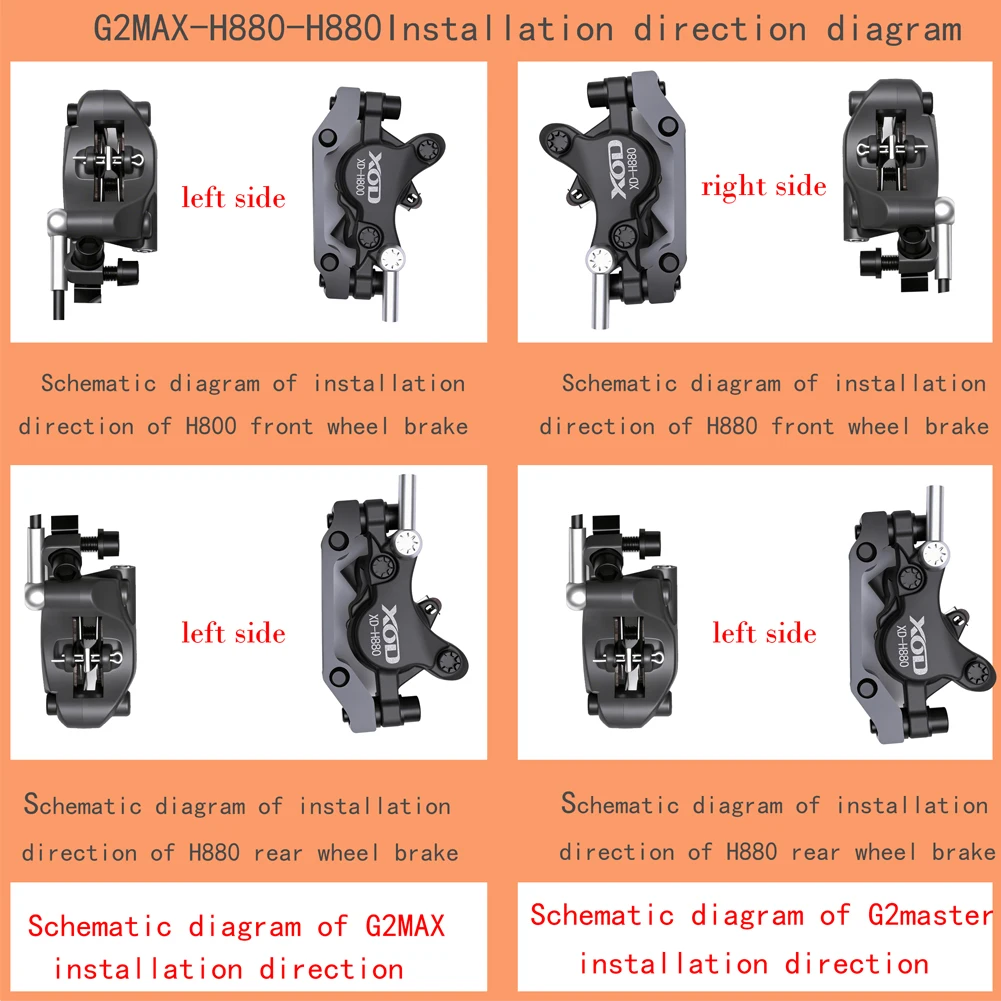

✔ Mounting options:

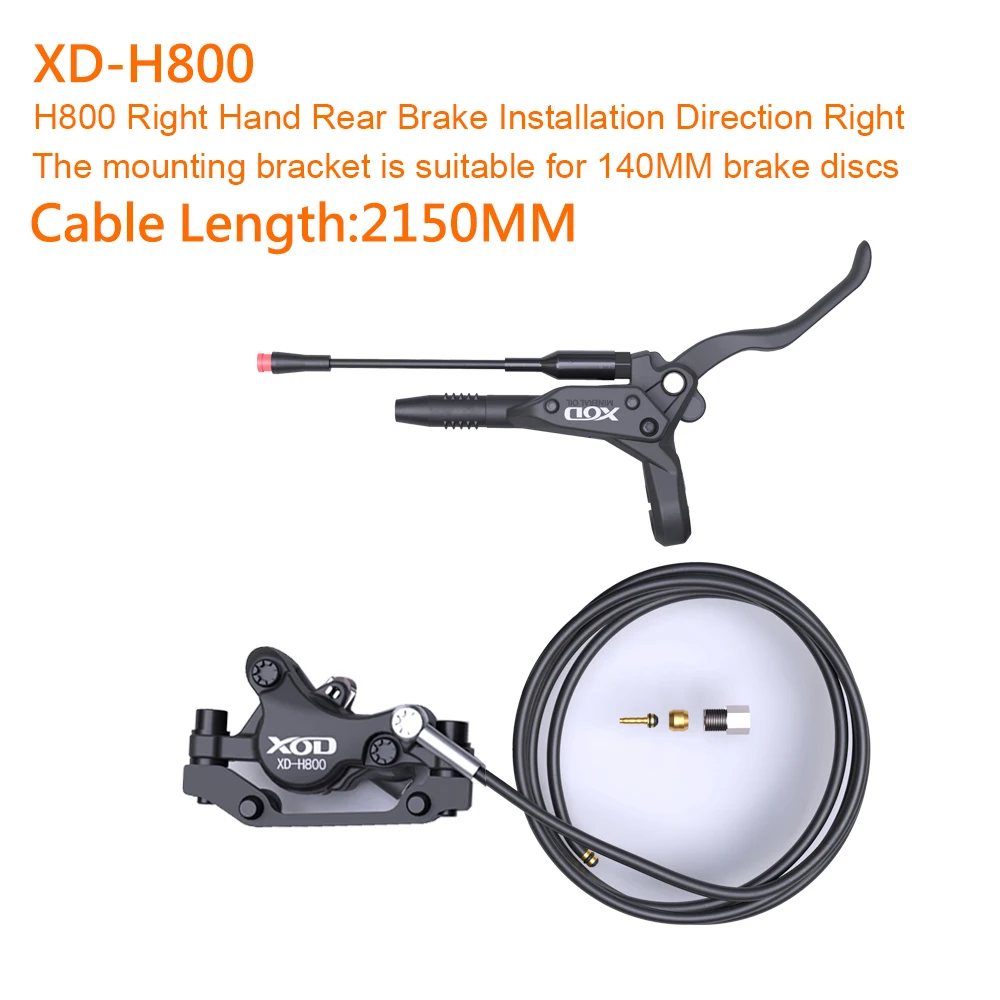

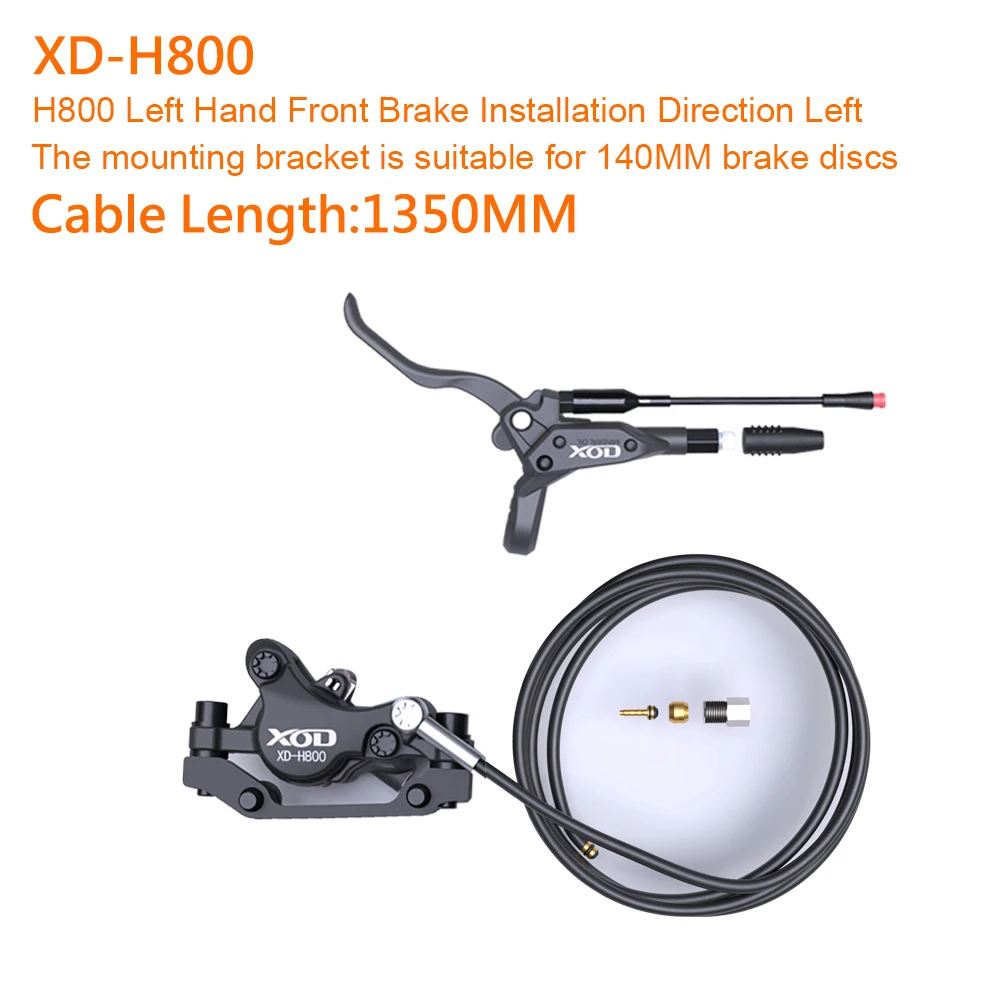

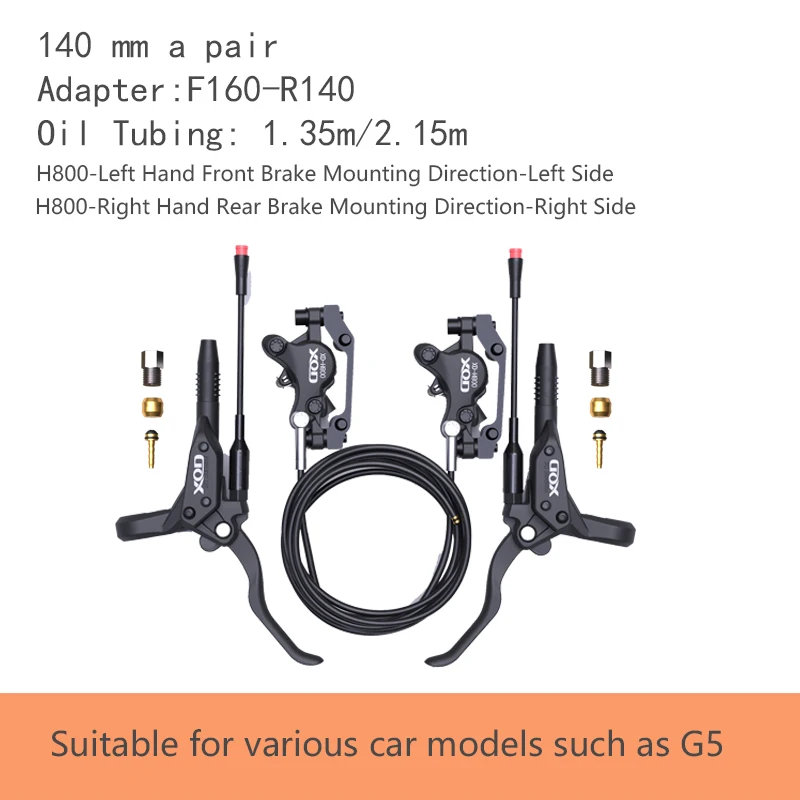

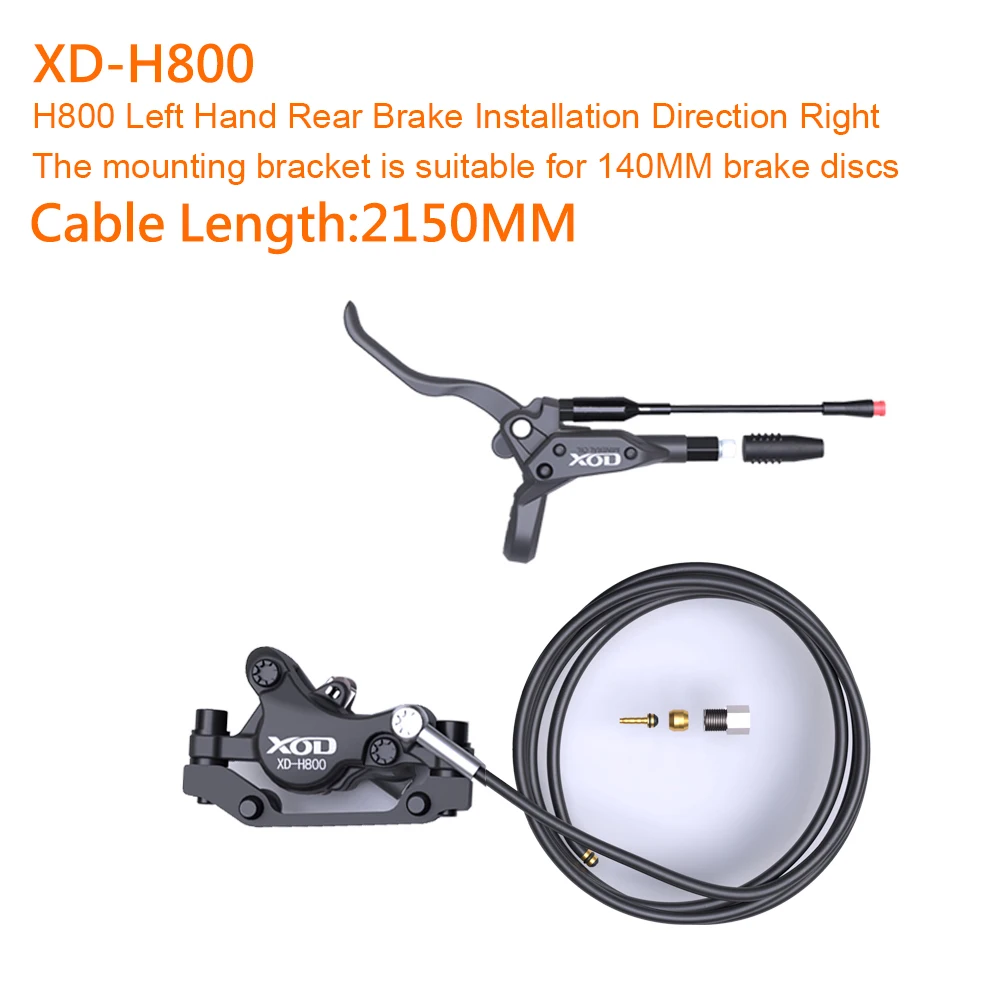

• XD-H800: Right mount (rear wheel) / Left mount (front wheel)

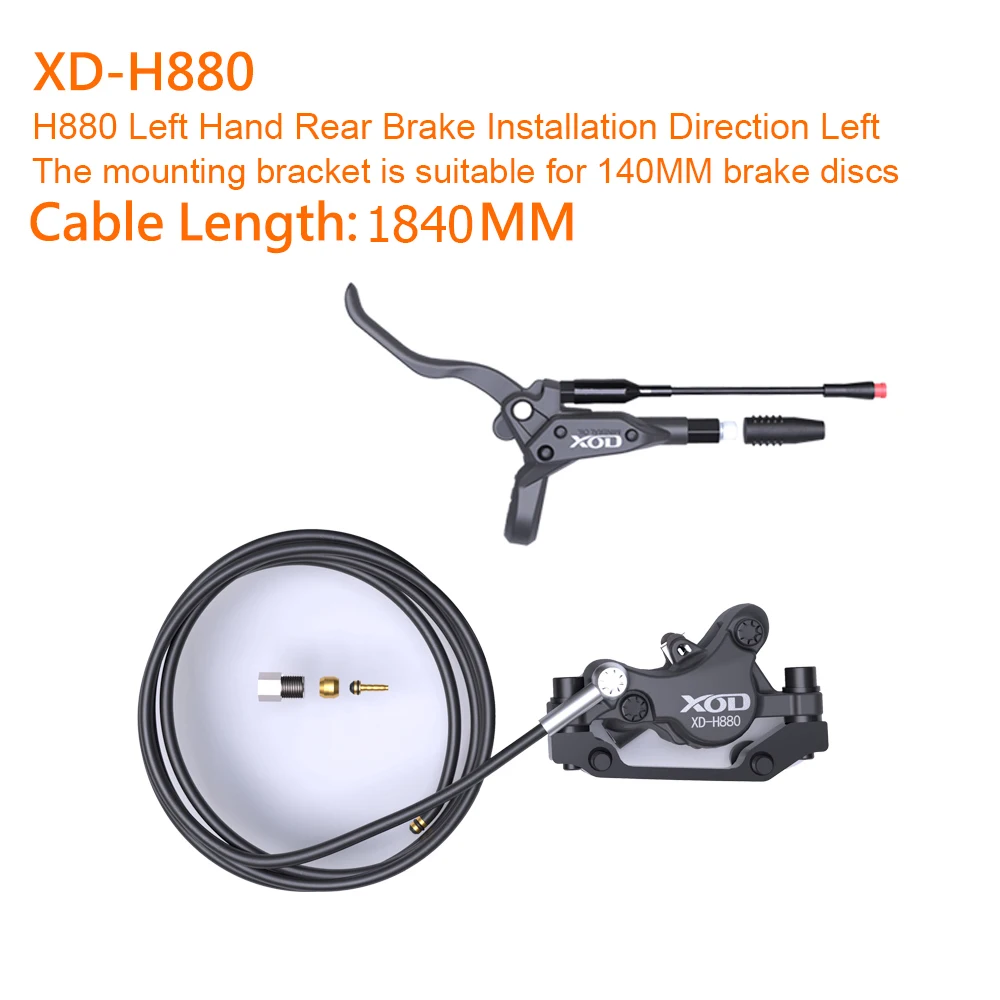

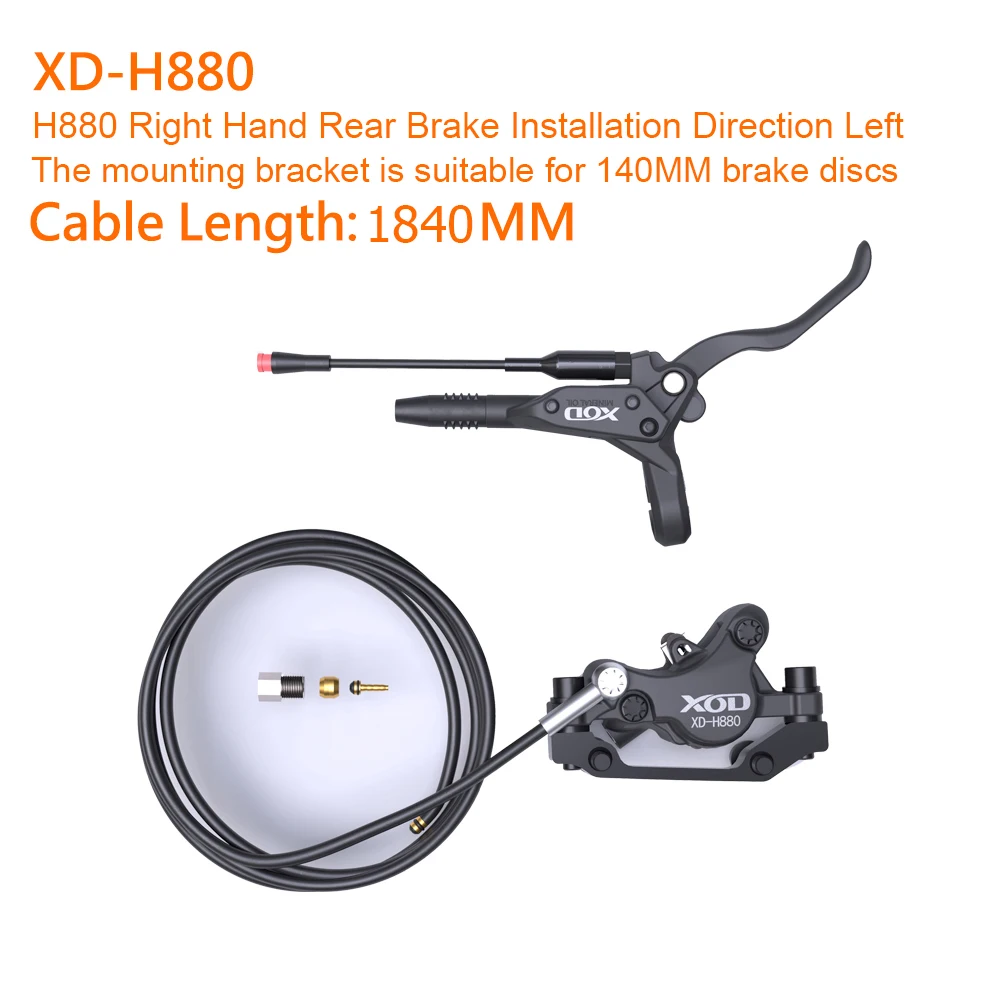

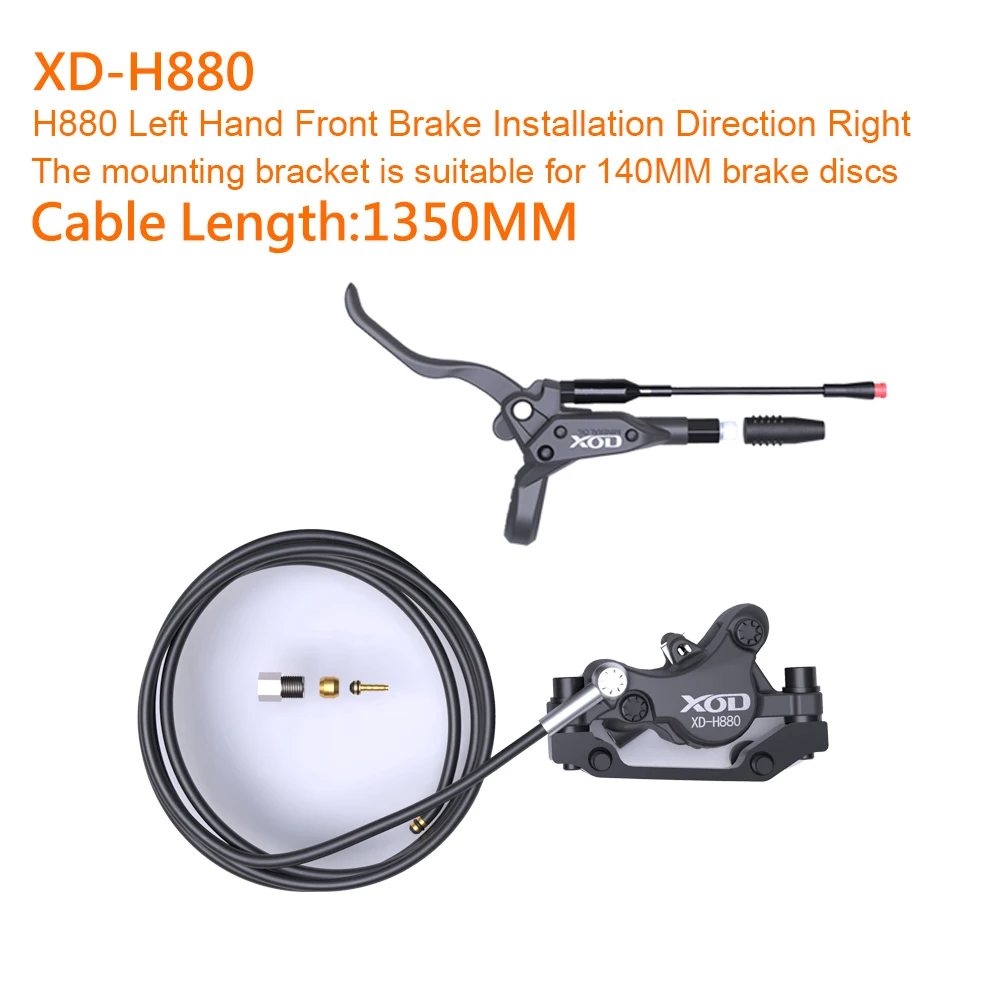

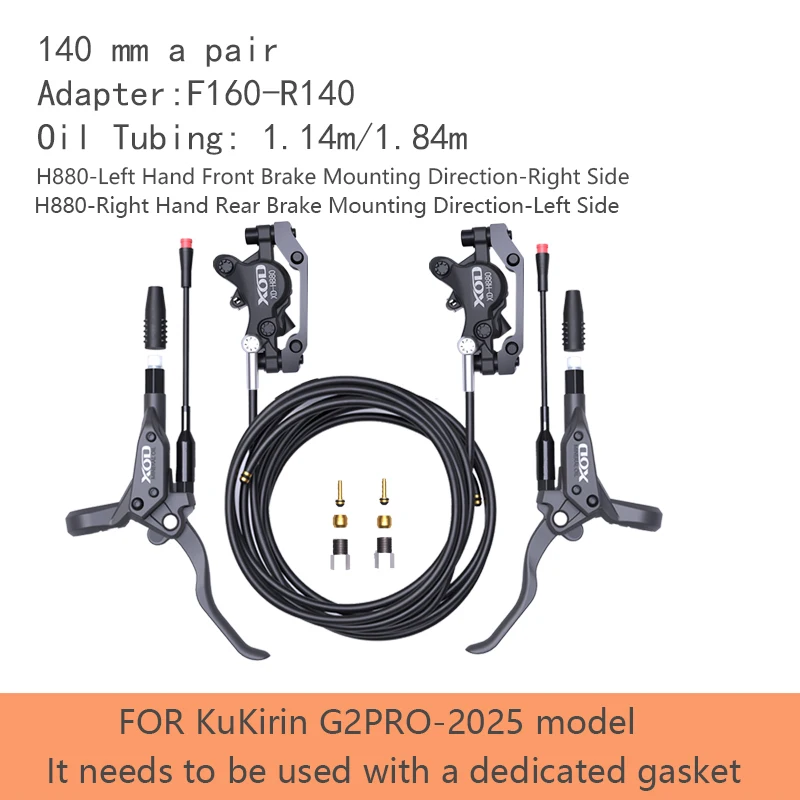

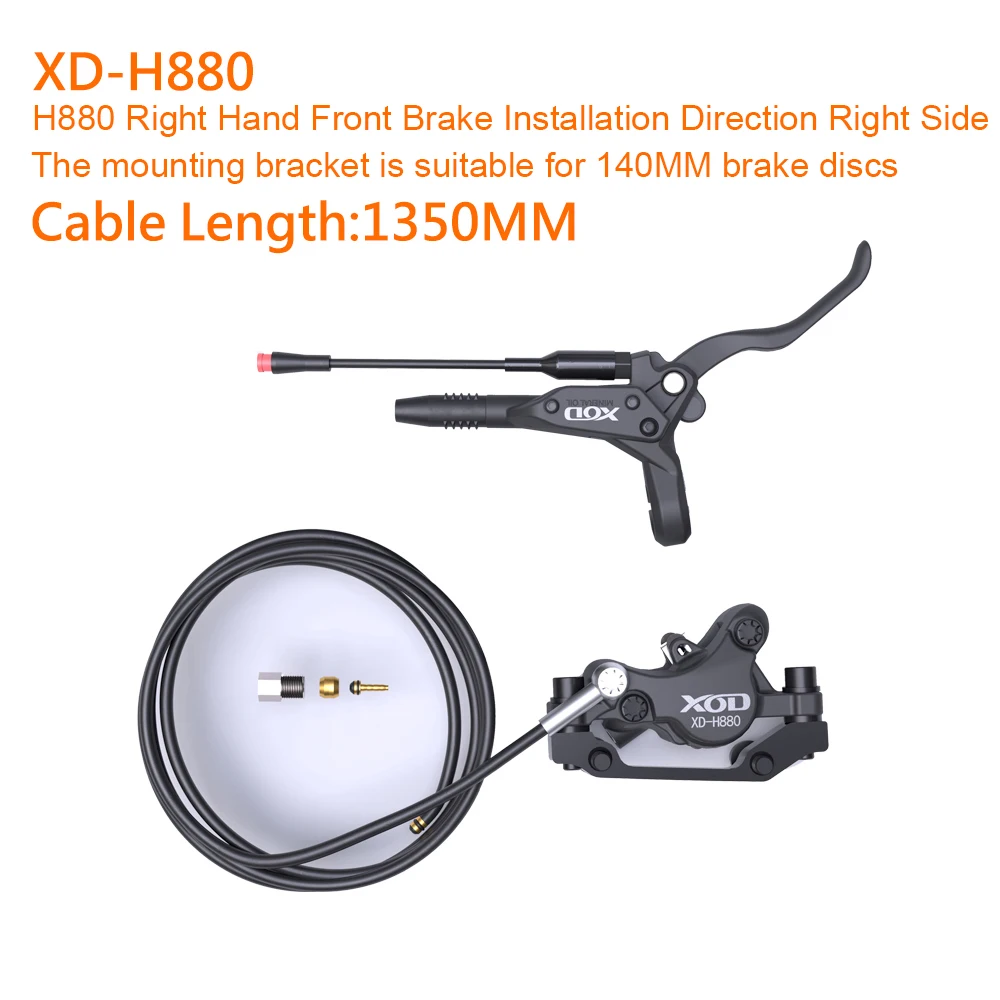

• XD-H880: Left mounting (rear wheel) / Right mounting (front wheel)

🛴 Extended compatibility:

• Ideal for KuKirin G2 Max, G2 Master, G3, G3 Pro, G4, G4 Max,G5 2024 and subsequent versions,  KUGOO , Blade 5WAD…

⚠ Attention:

• Check the mounting direction (left/right) before purchasing.

• The scooter images are for demonstration purposes only – the product does not include the scooter.

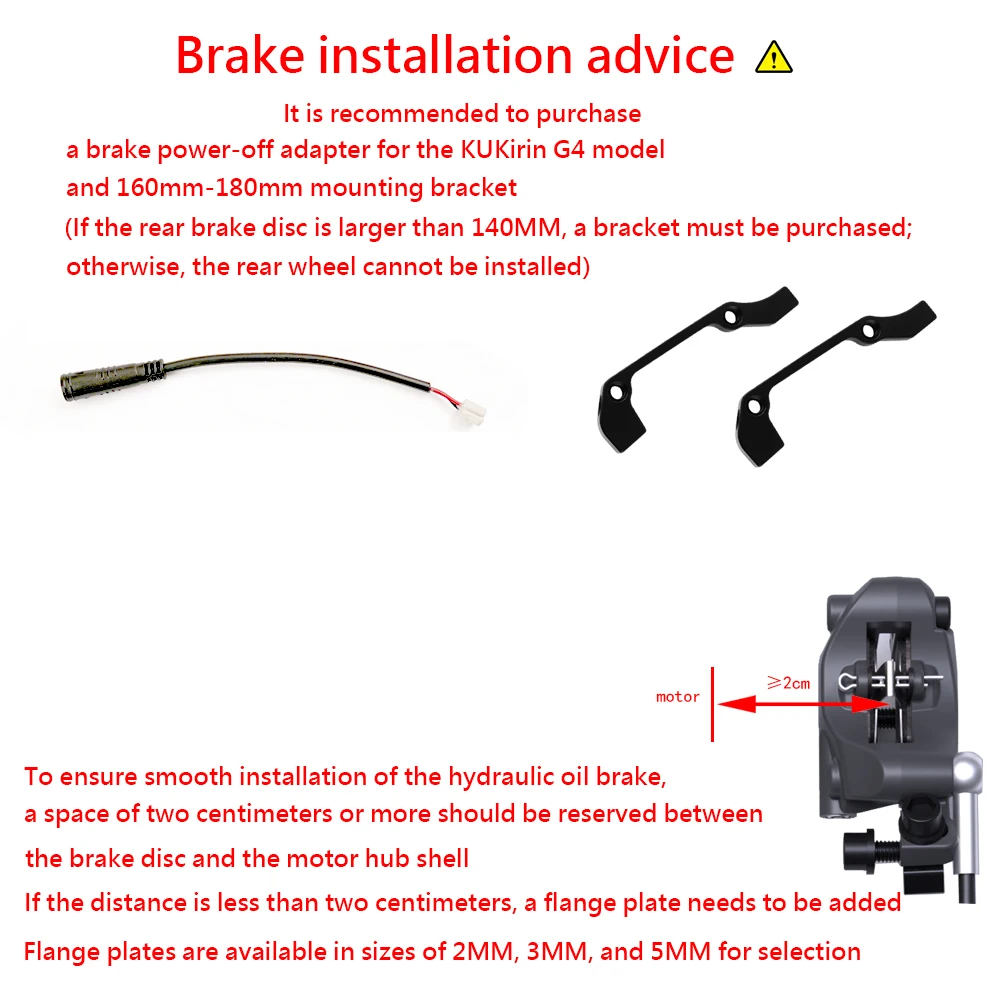

When installing the oil brake, it is prohibited to use shims to increase the height of the bracket. It is necessary to purchase a bracket of the corresponding height (for example, using a bracket for a 140MM brake disc with shims to install a 160MM brake disc). Doing so poses a risk of fracture to the oil brake pump

👉 Powerful and reliable braking for your KuKirin!
